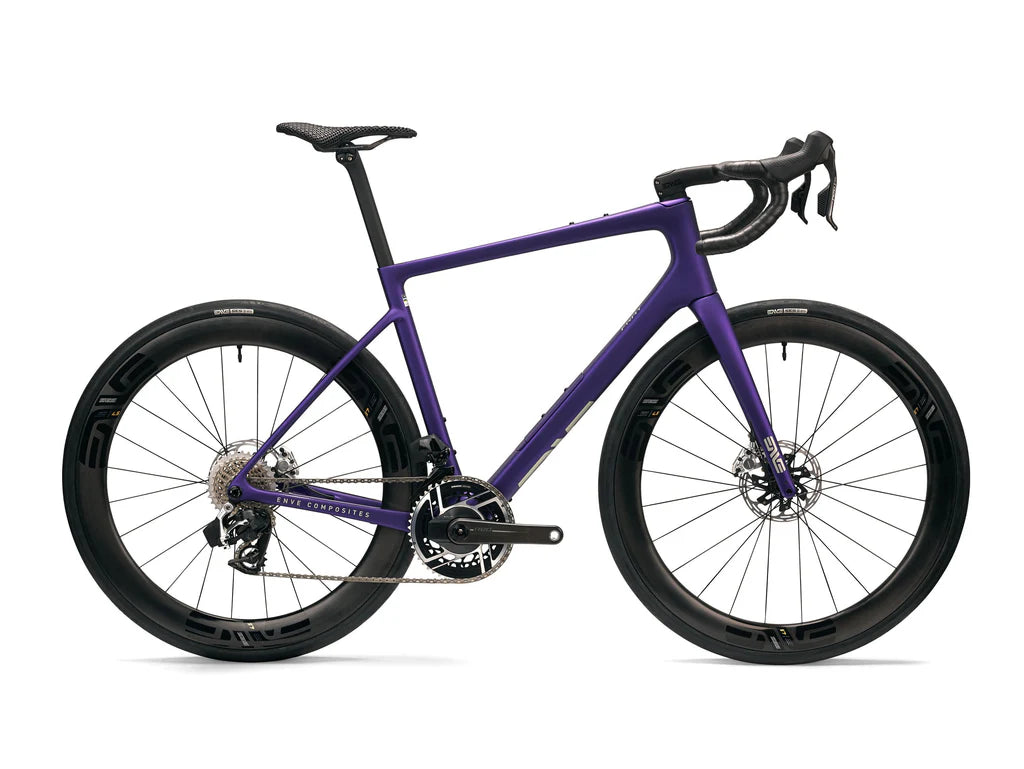

ENVE Fray Pro Red 2026
513521232
Fray frameset, SRAM RED 2x AXS drivetrain, SES 4.5 PRO wheels, ENVE Aero PRO One-Piece Bars with ENVE handlebar tape, SES Road tires
- Real-World Fast™ aero optimization
- Geometry optimized for 31mm - 35mm tires
- Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
- ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
- Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
- Aero tube shapes & design that complements SES rim shapes
- Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
- Frame Weight 900g (Size 56cm Painted, No Hardware)
| Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible |
| Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible |
| Target Application | All Road / Endurance / Mixed Surface / Sportif / Fondo |
| Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
| Fork Rake | 55, 51, 47, 43 |
| Frame Size/Fork Rake | 47cm/55, 50cm/55, 52cm/51, 54cm/51, |
| 56cm/47, 58cm/47, 60cm/43 | |
| Frame Weight | 900g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5″ IS52 Upper and Lower |
| Seat Post Diameter | ENVE Aero |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12×142 (Total Length: 168, TP:1.0, TL:14) |
| Minimum Tire Size | 27mm |
| Optimal Tire Size | 31mm - 35mm |
| Maximum Listed Tire Clearance 1x | 40mm |
| Maximum Listed Tire Clearance 2x | 38mm |
| In-Frame Storage | Yes (2 Storage Bags included - 18.22 cubic cm each) |
| Frame Routing | Internal |
| Waterbottle Capacity | 3 |
| Top Tube Mounts | Yes |
| Fender Compatible | Yes |
| Wheel Size | 700c |
