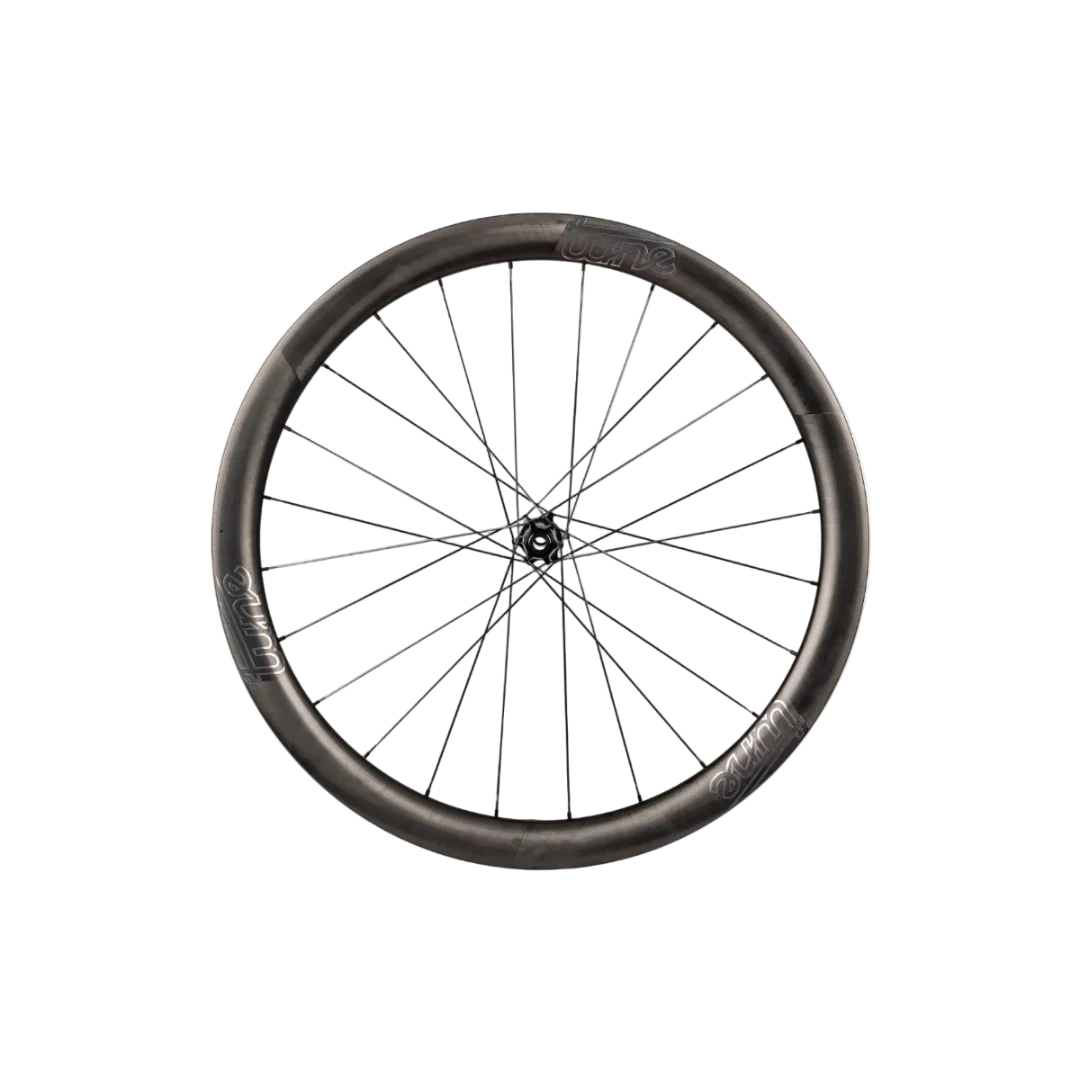

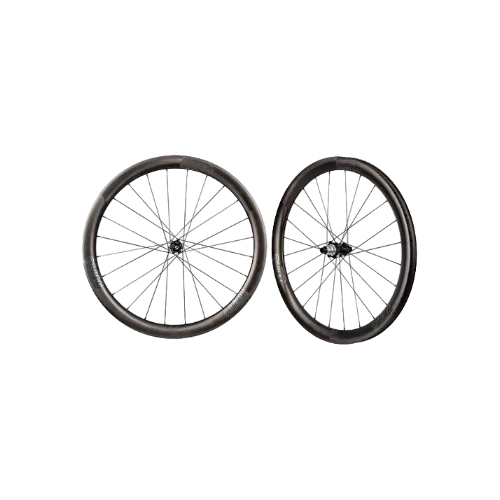

Tune Nano Gravel 45 Wheelset
4062266331638
The Nano Gravel 45 is the most versatile gravel wheel set we have developed so far.With its 45 mm deep carbon rims, it is aerodynamically optimized—making it equally suited for gravel racing and fast evening rides off-road. The generous 30 mm internal rim width allows you to run wider tires at lower pressures, significantly increasing comfort, control, and traction across all terrain.
| Weight wheelset | 1355g (+/- 3%) |
| Colours | black, silver, red |
| Hub type | Nano CL with POEtry 69 Freewheel , 69 points of engagement and Enduro Bearings options. Freewheels available: HG, XDR, Microspline, N3W |
| Axle standard | front: 100x12mm, rear: 142x12mm |
| Brake interface | Centerlock* disc-brake interface |
| Spokes | 24pcs front and 24pcs rear SAPIM CX-Ray |
| rim height | 45mm front and rear |
| rim inner width | 30mm front and rear |
| Rim outer width | 36mm front and rear |
| Rim standard | 700c clincher |
| Tubeless ready | Yes |
| max. pressure | Max pressure of the tyre |
| Nipples | SAPIM black anodized, double square, Polyax, Secure Lock 16mm |
| Valve type | 60mm Tune Tubeless Valve (delivered with the wheelset) |
| Tyres | 38mm to 66mm (ETRTO recommendation: 47-57mm) |
| Warranty | 10 years for the rims, hub bodies, axle, and end caps, lifetime warranty for the ceramic XD-15 ball bearings. Wear parts are not covered. |
| Max. rider weight | 120kg |
| Max. system weight | 130kg |
| Scope of delivery | wheels and packaging, valves, rim tape |
First, you'll get 5% back in store credit to use towards future purchases.
When you purchase through us, you get:
- Advice on whether the bike or product suits your needs.
- A professional build for all bikes, which ensures safety. If there is an issue, we can promise you that 99 out of 100 times, it will be resolved quicker than you can in your garage.
- A build history that becomes a service history, ideally. That can be very helpful if you do have any sort of warranty issue.
- Warranty support - Just contact us and we will guide you through the process.
Tune Nano Gravel 45 Wheelset
Sale price$2,995.00
