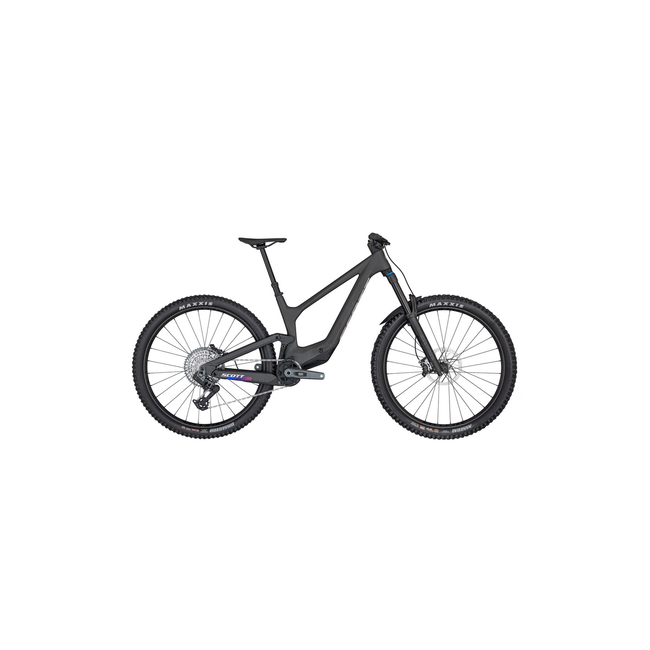

Frame Ransom Carbon HMF Mainframe with Alloy 6061 SwingarmIntegrated Suspension Technology6 Link kinematic / Adjustable head angleSyncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline / MX Ready
Fork FOX 38 Float Performance Elite Grip 2 AirHSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle44mm offset / tapered steerer170mm travel
Rear ShockFOX FLOAT X NUDE EVOL Piggy Back Trunnion / SCOTT custom w. travel / geo adj.3 modes: Climb-Ramp Control-DescendCustom large Air volume / Comp & Reb. Adj.Travel 170-130-Climb / T205X65mm / Bearing Hardware
Remote SystemTracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes
Rear DerailleurSRAM GX Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
Shifters SRAM AXS Rocker Controller
Crankset SRAM GX Eagle TransmissionBash guard / DUB / 55mm CL / 32T
Chainguide SCOTT custom
BB-Set SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain SRAM CN GX Eagle Transmission
Cassette SRAM GX Eagle XS 1275 Transmission 10-52
Brakes SRAM Code RSC Stealth 4 Piston Disc
Rotor SRAM HS2 Rotors F&R 200mm
Handlebar Syncros Hixon iC CarbonSize S & M 15mm rise / Size L & XL 25mm riseback sweep 8° / 780mm / 40mmSyncros Endurance lock-on grips
Seatpost Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mmS size 140mm / M size 180mm / L & XL size 210mm
Seat Syncros Tofino 1.5Titanium Rails
Headset Syncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Wheelset Syncros Revelstoke 2.0 6 BoltF: 15x110mmR: 12x148mm Boost30mm Tubeless ready rim 28H / XD DriverSyncros Axle w/Removable Lever with Tool
Front Tire Maxxis Assegai / 2.5" / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp
Rear Tire Maxxis Dissector / 2.4" / 120TPI Foldable / DD/ TR / 3C Maxx Terra
Extras SRAM AXS PowerpackSyncros Trail Fender 2 36/38
Accessories Syncros IS Matchbox kitSyncros IS tubeless Handlebar tool / Syncros Multi-tool Matchbox 8
Approx weight in KG15.7 (Tubeless setup without Matchbox IS)
Approx weight in LBS34.61 (Tubeless setup without Matchbox IS)
Max. System Weight128 kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
